Key Features EOS R3 BODY
- 24MP Full-Frame Stacked BSI CMOS Sensor
- Dual Pixel CMOS AF II, Eye Control AF
- 6K60 Raw and 4K120 10-Bit Internal Video
- 30 fps E. Shutter, 12 fps Mech. Shutter
- 5.76m-Dot EVF with 120 fps Refresh Rate
- 3.2" 4.2m-Dot Vari-Angle Touchscreen LCD
- Sensor-Shift 5-Axis Image Stabilization
- Multi-Function Shoe, Built-In Vert. Grip
- CFexpress & SD UHS-II Memory Card Slots
- Wired LAN and 5 GHz Wi-Fi Support
Canon EOS R3 combines the technology from their mirrorless EOS R system with the robustness and performance you'd expect from a flagship DSLR. Revolving around a new full-frame stacked sensor, updated AF performance, and refined body design, the EOS R3 is first 3-Series camera since the film era and plants itself as a fast-shooting, flexible, and contemporary mirrorless camera.
Among the most significant technologies in the R3 is the 24.1MP stacked sensor which affords truly fast readout speeds to help reduce rolling shutter distortion and benefit fast continuous shooting and video recording applications. This full-frame BSI CMOS sensor is also benefitted by an updated DIGIC X processor, which helps boost the overall speed for up to 30 fps continuous shooting with an electronic shutter, 6K 60p raw and 4K 120p video recording, and intelligent Dual Pixel CMOS II autofocus with Eye Control AF for intuitive focus point selection.
The R3 is also the first EOS R-series camera to feature a built-in vertical grip, making it an ergonomic choice for long shooting times and for seamlessly switching between horizontal and vertical shooting orientations. The rugged body design also incorporates a high-resolution 5.76m-dot OLED EVF and a 3.2" vari-angle touchscreen LCD, along with dual memory card slots, wireless and wired connectivity, and an updated Multi-Function Shoe design for expanded accessory compatibility.
Full-Frame Stacked Sensor and DIGIC X Processor
24.1MP BSI Stacked CMOS Sensor
DIGIC X Processor
Electronic Shutter
A manual shutter is also available, and offers a top continuous shooting speed of 12 fps, with a buffer of more than 1000 frames, along with a top flash sync speed of 1/250 sec.
6K Raw and DCI/UHD 4K Video Recording
Autofocus and Image Stabilization
Dual Pixel CMOS AF II
Eye Control AF
Sensor-Shift Image Stabilizer
Body Design

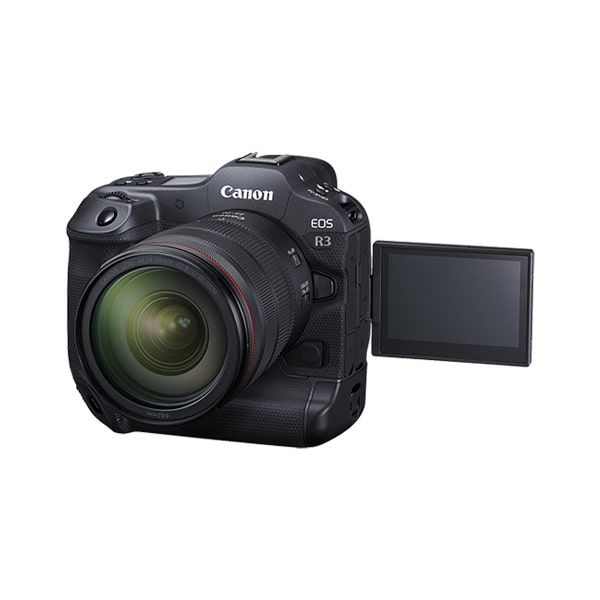

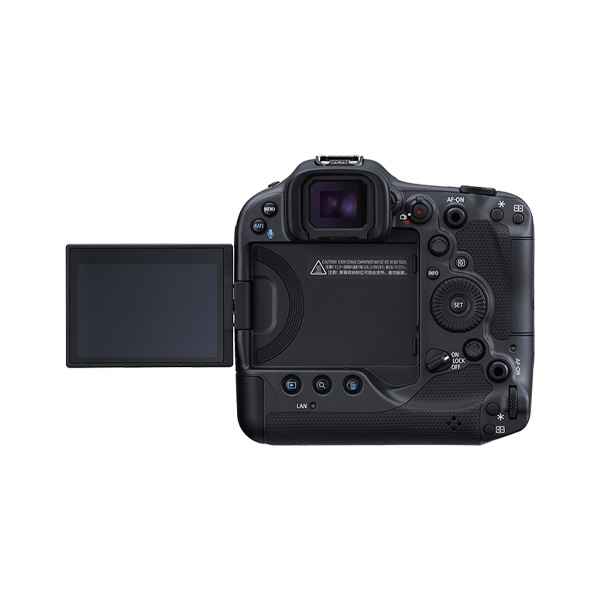

In addition to the EVF, a 3.2" vari-angle LCD is also available and benefits working high, low, and front-facing angles. The flexible position is complemented by a touchscreen interface and the impressive 4.15m-dot resolution allows for vivid playback and live view monitoring.
Professional-Grade Body Construction

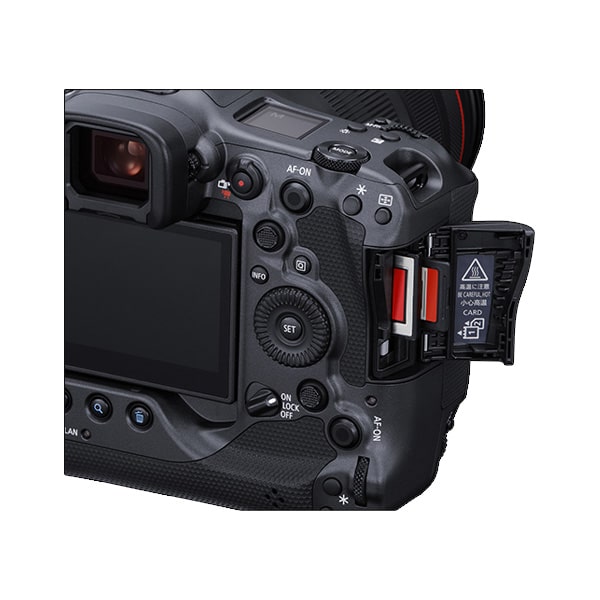

Dual Memory Card Slots
Connectivity
There is also a built-in GPS module, which is compatible with GLONASS and QZSS, for in-camera location tagging to help streamline any geotagging and timestamp needs.

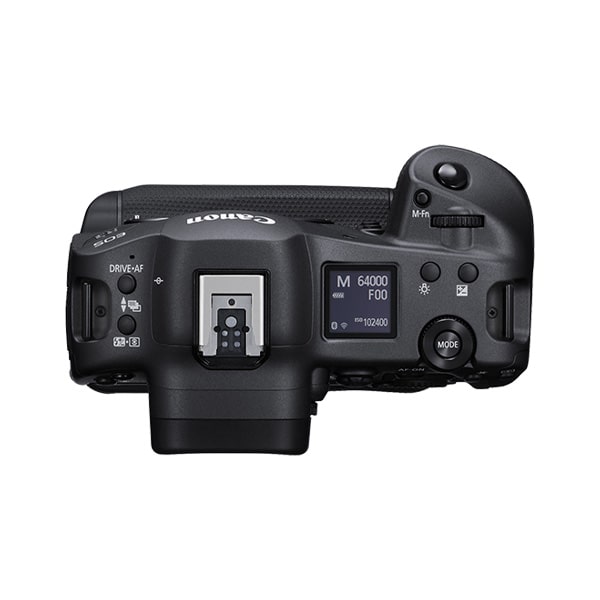

Next-Generation Multi-Function Shoe
Canon R3 Specs
Imaging
Lens Mount | Canon RF |
Sensor Resolution | Actual: 26.7 Megapixel Effective: 24.1 Megapixel |
Sensor Type | 36 x 24 mm (Full-Frame) CMOS |
Image Stabilization | Sensor-Shift, 5-Axis |
Built-In ND Filter | None |
Capture Type | Stills & Video |
Exposure Control
Shutter Type | Electronic Shutter, Mechanical Focal Plane Shutter |
Shutter Speed | Mechanical Shutter 1/8000 to 30 Seconds Electronic Shutter 1/64000 to 30 Seconds in Manual Mode 1/64000 30 Seconds in Shutter Priority Mode 1/8000 30 Seconds in Aperture Priority Mode 1/8000 30 Seconds in Program Mode |
Bulb/Time Mode | Bulb Mode |
ISO Sensitivity | Photo/Video 100 to 102,400 (Extended: 50 to 204,800) |
Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
Metering Range | -3 to 20 EV |
White Balance | 2500 to 10,000K Presets: Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
Continuous Shooting | Electronic Shutter Up to 30 fps at 24.1 MP for up to 150 Frames (Raw) / 540 Frames (JPEG) Mechanical Shutter Up to 12 fps at 24.1 MP for up to 1000 Frames (Raw) / 1000 Frames (JPEG) |
Interval Recording | Yes |
Self-Timer | 2/10-Second Delay |
Still Image Capture
Image Sizes | 3:2 Raw 6000 x 4000 3744 x 2496 16:9 JPEG 6000 x 3368 3984 x 2240 2976 x 1680 2400 x 1344 4:3 JPEG 5328 x 4000 3552 x 2664 2656 x 1992 2112 x 1600 3:2 JPEG 3984 x 2656 2976 x 1984 2400 x 1600 1:1 JPEG 4000 x 4000 2656 x 2656 1984 x 1984 1600 x 1600 |
Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
Image File Format | JPEG, Raw, HEIF |
Bit Depth | 14-Bit |
Internal Recording Modes | H.265/MP4 4:2:2 10-Bit DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/ fps [85 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/ fps [85 to 1880 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/100/ fps [28 to 470 Mb/s] H.264/MP4 4:2:0 8-Bit DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/ fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/ fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100/ fps Raw 12-Bit 6000 x 3164 at 23.98/24.00/25/29.97/50/59.94 fps [720 to 2600 Mb/s] |
External Recording Modes | 4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps |
Sensor Crop Modes | Super35 / APS-C 4K (4096 x 2160) 1080p (1920 x 1080) |
Gamma Curve | Canon Log 3 |
Recording Limit | None |
Broadcast Output | NTSC/PAL |
IP Streaming | None |
Built-In Microphone Type | Mono |
Audio Recording | 2-Channel AAC Audio 2-Channel LPCM Audio |
Interface
Media/Memory Card Slot | Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II) |
Video I/O | 1 x Micro-HDMI Output |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body |
Power I/O | 1 x USB-C Input |
Other I/O | 1 x RJ45 1 x Canon N3 Control 1 x USB-C Data Output (Shared with Power Input) |
Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g) Control |
Global Positioning (GPS, GLONASS, etc.) | GPS, GLONASS, QZSS |
Monitor
Size | 3.2" |
Resolution | 4,150,000 Dot |
Display Type | Articulating Touchscreen LCD |
Secondary Display | Top: Status Display |
Type | Built-In Electronic (OLED) |
Size | 0.5" |
Resolution | 5,760,000 Dot |
Eye Point | 23 mm |
Coverage | 100% |
Magnification | Approx. 0.76x |
Diopter Adjustment | -4 to +2 |
Focus
Focus Type | Auto and Manual Focus |
Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
Autofocus Points | Phase Detection: 1053 |
Autofocus Sensitivity | -7.5 to +20 EV |
Flash
Built-In Flash | No |
Maximum Sync Speed | 1/250 Second |
Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
Dedicated Flash System | eTTL |
External Flash Connection | Intelligent Hot Shoe, PC Terminal, Wireless |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 0 to 85% |
General
Battery Type | 1 x LP-E19 Rechargeable Lithium-Ion, 10.8 VDC, 2700 mAh or 1 x LP-E4N Rechargeable Lithium-Ion, 11.1 VDC, 2450 mAh |
Tripod Mounting Thread | 1 x 1/4"-20 Female (Bottom) |
Accessory Mount | 1 x Intelligent Hot Shoe |
Material of Construction | Magnesium Alloy |
Dimensions (W x H x D) | 5.9 x 5.6 x 3.4" / 150 x 142.6 x 87.2 mm |
Weight | 1.8 lb / 822 g (Body Only) 2.2 lb / 1015 g (With Battery, Recording Media) |
