Fortinet

FG-2500E

  • Sale
  • Regular price $0.00
Tax included.


FG-2500E Overview

The FortiGate 2500E delivers high performance threat protection and SSL inspection for large enterprises and service providers, with the flexibility to be deployed at the enterprise/cloud edge, in the data center core or internal segments. The multiple high-speed interfaces, high port density, superior security efficacy and high throughput of the 2500E keeps your network connected and secure.

Quick Spec

Table 1 shows the quick spec of FG-2500E.

Model

FG-2500E

Firewall

150 Gbps

IPS

11.5 Gbps

NGFW

9 Gbps

Threat Protection

5.4 Gbps

Product Details

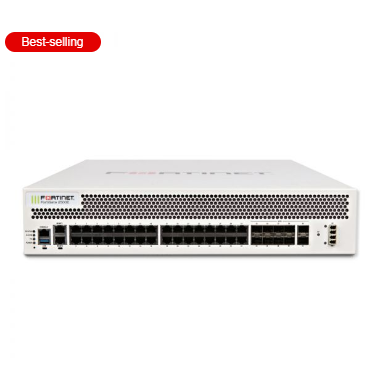

Figure 1 shows the ports of FG-2500E.

FG-2500E Ports

Note:

Console Port

32x GE RJ45 Ports

USB Port

10x 10 GE SFP+ Slots

2x GE RJ45 Management Ports

2x 10 GE SFP+ SR (LC Connector, bypass)

FG-2500E provides these features:

Security

· Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement

· Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic

· Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services

Performance

· Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology

· Provides industry-leading performance and protection for SSL encrypted traffic

Certification

· Independently tested and validated best security effectiveness and performance

· Received unparalleled third-party certifications from NSS Labs

Networking

· Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources

· Delivers high-density, flexible combination of various highspeed interfaces to enable best TCO for customers for data center and WAN deployments

Management

· Includes management console that is effective, simple to use, and provides comprehensive network automation & visibility.

· Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management

· Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

· Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation

Compare to Similar Item

Table 2 shows the comparison.

Model

FG-3300E

FG-2500E

Firewall

160 Gbps

150 Gbps

NGFW

21 Gbps

9 Gbps

Threat Protection

17 Gbps

5.4 Gbps

Interfaces

4x 40GE QSFP+ slots,

16x 25GE SFP28 / 10GE SFP+ slots (including 14x ports, 2x HA ports),

14x GE RJ45 ports (including 12x ports, 2x management ports),

4x 10GBase-T ports

Multiple GE RJ45, 10 GE SFP+ slots and

Bypass 10 GE SFP+ ports

Get More Information

Do you have any question about the FG-2500E?

Contact us now via Live Chat or info@falcon-atlantic.net

FG-2500E Specification

FG-2500E Specification

Interfaces and Modules

Hardware Accelerated 10 GE SFP+ Slots

10 + 2 bypass

Hardware Accelerated GE RJ45 Ports

32

GE RJ45 Management / HA Ports

2

USB Ports

1

Console Port

1

Internal Storage

1x 480 GB SSD

Included Transceivers

2x SFP+ (SR 10GE)

System Performance — Enterprise Traffic Mix

IPS Throughput 2

11.5 Gbps

NGFW Throughput 2, 4

9 Gbps

Threat Protection Throughput 2, 5

5.4 Gbps

System Performance and Capacity

IPv4 Firewall Throughput

(1518 / 512 / 64 byte, UDP)

150 / 150 / 95 Gbps

IPv6 Firewall Throughput

(1518 / 512 / 86 byte, UDP)

150 / 150 / 95 Gbps

Firewall Latency (64 byte, UDP)

2 μs

Firewall Throughput (Packet per Second)

145.5 Mpps

Concurrent Sessions (TCP)

20 Million

New Sessions/Second (TCP)

500,000

Firewall Policies

100,000

IPsec VPN Throughput (512 byte)

95 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

20,000

Client-to-Gateway IPsec VPN Tunnels

100,000

SSL-VPN Throughput

6 Gbps

Concurrent SSL-VPN Users

(Recommended Maximum, Tunnel Mode)

30,000

SSL Inspection Throughput (IPS, avg. HTTPS)

9.4 Gbps

SSL Inspection CPS (IPS, avg. HTTPS)

5,500

SSL Inspection Concurrent Session

(IPS, avg. HTTPS)

2 Million

Application Control Throughput (HTTP 64K)

20 Gbps

CAPWAP Throughput (1444 byte, UDP)

21 Gbps

Virtual Domains (Default / Maximum)

10 / 500

Maximum Number of FortiSwitches Supported

128

Maximum Number of FortiAPs (Total / Tunnel)

4,096 / 1,024

Maximum Number of FortiTokens

20,000

Maximum Number of Registered FortiClients

20,000

High Availability Configurations

Active-Active, Active-Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

3.5 x 17.4 x 21.9

Height x Width x Length (mm)

88 x 442 x 555

Form Factor

Rack Mount, 2 RU

Power

AC Power Supply

100–240V AC, 50–60 Hz

Maximum Current

9A

Power Consumption (Average / Maximum)

312 W / 470 W

Heat Dissipation

1,604 BTU/h

Redundant Power Supplies

Yes, Hot Swappable

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

58 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
