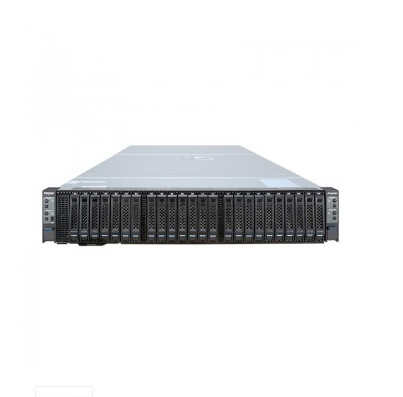

Inspur i24 Server Overview
Inspur introduced computing dense i24 a high-end 2U4N rack-mounted server optimized for brand-new high-density data centers and applications. Extreme performance and ultimate flexible modular based design can meet various flexible demands which are Compute intensive, distributed infrastructure, super converged infrastructure platform and so on. In the limited space, i24 achieves perfect functionalities: high-density, efficiency, reliability and intelligence. Meanwhile, excellent scalability makes it even suitable for virtualization infrastructures, HPC and cloud platforms.
Quick Spec
Table 1 shows the quick spec.
|
Model |
i24 Node |
|
Form Factor |
2U |
|
Chipset |
Intel® C622/624 series chipset |
|
Processor family |
2 Intel Xeon Scalable processors |
|
Processor core available |
Maximum 28-core per processor |
|
Processor speed |
3.6 GHz, maximum depending on processor |
|
Memory slot |
16 DIMM slots, Capacity up to 1TB (64G x 16) |
|
Memory type |
RDIMMs, LDIMMs and NVDIMM |
|
Memory protection features |
ECC |
|
Storage controller |
Onboard SATA controller Inspur SAS 3008 (IT/IMR) support RAID 0,1,10,1E,5 Inspur SAS RAID 3108 (RAID 0,1,10,1E,5,6,10,50). 2G/4G cache and SuperCap options. LSI 9361-8i (RAID 0,1,1E,5,6,10,50). 1G/2G cache and SuperCap options. |
Product Details
Inspur i24 Server provides these features:
Extreme / World-class Performance
· 8 new generation of Intel® Xeon® scalable processor
· Supports 2666 MHz speeds based on the memory stick and aggregately achieve up to 4TB memory capacity.
· Allows NVDIMM option which guarantees the better performance of cache node.
· Supports NVMe All-flash SSDs to ensure the maximum front-end access rate.
Flexible Design/Configurations
· Supports 4x 1U 2-socket half-width node (NS5162M5) and each node is connected to the enclosure.
· Supports up to 24SFF or 12 LFF HDD/SSDs
· Supports 12*PCO-E x16 and 4 OCP cards
· Supports 2*2000W high efficiency power supplies
Intelligent Management
Embedded with the upgraded intelligent management system composed of CMC and BMC, it supports both IPMI 2.0 as well as Redfish.
Get More Information
Do you have any question about the Inspur i24 Node?
Contact us now via Live Chat or info@falcon-atlantic.net
Inspur i24 Server Specification
i24 Node Specification |
|
|
Form Factor |
2U |
|
Chipset |
Intel® C622/624 series chipset |
|
Processor family |
2 Intel Xeon Scalable processors |
|
Processor core available |
Maximum 28-core per processor |
|
Processor speed |
3.6 GHz, maximum depending on processor |
|
Memory slot |
16 DIMM slots, Capacity up to 1TB (64G x 16) |
|
Memory type |
RDIMMs, LDIMMs and NVDIMM |
|
Memory protection features |
ECC |
|
Storage controller |
Onboard SATA controller Inspur SAS 3008 (IT/IMR) support RAID 0,1,10,1E,5 Inspur SAS RAID 3108 (RAID 0,1,10,1E,5,6,10,50). 2G/4G cache and SuperCap options. LSI 9361-8i (RAID 0,1,1E,5,6,10,50). 1G/2G cache and SuperCap options. |
|
I/O Expansion slot |
Up to 3 PCIE slot |
|
Network Controller |
Support OCP/PHY, external PCI-E card |
|
MIC |
1x independent 1000Mbps NIC for remote control |
|
DVD ROM |
Aspeed2500 COD, 64MB video memory, resolution up to 1280*1024 |
|
Integrated I/O port |
SUV interface board (2x RS-232 + 1x VGA +2x USB 2.0) |
|
Internal Storage |
2xSATA M.2 SSDs |
|
Enclosure Specs |
|
|
Storage |
2.5” NVMe backplane: support 24x hot-swap NVMe HDD/SSDs 2.5” NVMe+SAS backplane: support 24x hot-swap SAS/SATA/SSD/NVMe HDD/SSDs (up to 4xNVMe SSDs and 2x SAS/SATA HDDs per node) 3.5” backplane: support 12x hot-swap SAS/SATA HDD/SSDs |
|
Power Supply |
2000W 80Plus Platinum power supplies Single or Dual Power Supply options Support 100-240V AC or 192-300V DC power supply |
|
Fan |
4x80mm system fans in the middle of the enclosure |
|
Dimensions |
2.5” enclosure: 446(W)*87.5(H)*805(D)mm 3.5” enclosure: 446(W)*87.5(H)*845(D)mm |
|
Management |
Integrate BMC+CMC and IKVM remote management module compliance to IPMI2.0, supporting KVM over IP, and Redfish |
|
Supported Operating Systems |
Linux and Windows |
|
Operating Temperature |
5℃~35℃ |
|
Input Voltage |
110-240V |
