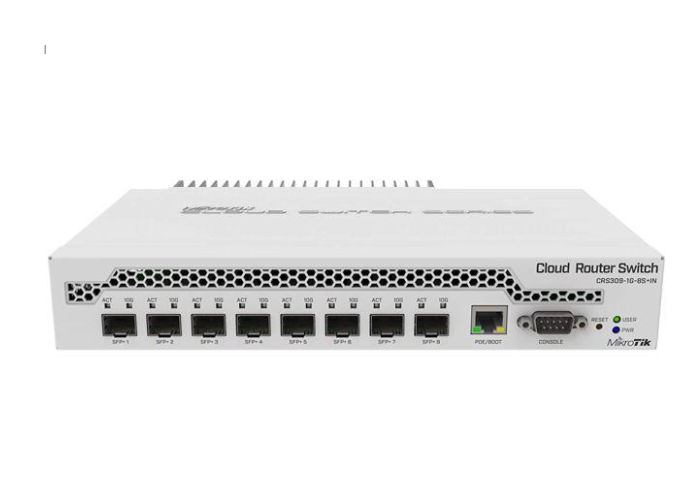

MikroTik CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps. MikroTik CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps. The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
The compact and sleek metallic enclosure also acts as a heat sink, making this device passively cooled - no fan noise and no dust accumulation inside. Special rack mount ears for installing unit into the standard rack are provided. Product Specifications Product code CRS309-1G-8S+IN CPU Dual-core 98DX8208 800 MHz RAM 512 MB Storage Flash 16 MB Switch chip model 98DX8208 Dimensions 141 x 115 x 28 mm Operating temperature -40°C.. +70°C tested Operating system SwOS / RouterOS (Dual boot) License level 5 Interfaces 10/100/1000 Ethernet ports 1 10G SFP+ ports 8 Serial port RS232 Powering PoE in Yes, Passive POE and 802.3 af/at compliant Supported input voltage 12 - 57 V (DC jack), 18 - 57 V (PoE in) Number of DC jacks 1 Max power consumption 33 W / 19 W (without attachemnts) Product Includes (1) CRS309-1G-8S+IN Switch (1) Screw Kit (1) Set of Rack Ears Datasheet CRS309-1G-8S+INProduct informationPackage Dimensions 15.12 x 8.07 x 2.09 inchesItem Weight 2.61 poundsManufacturerMikroTikASINB07NFXN4SSItem model numberCRS309-1G-8S+INCustomer Reviews 4.6 out of 5 stars177 ratings 4.6 out of 5 starsBest Sellers Rank#119 in Computer Networking SwitchesDate First AvailableFebruary 22, 2019Warranty
