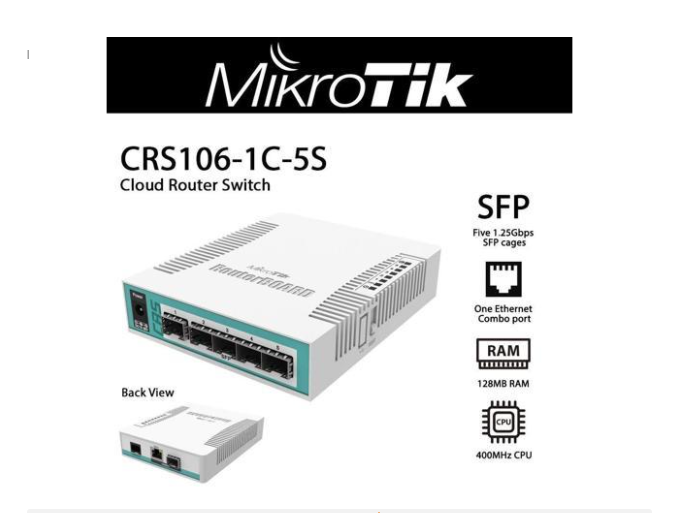

The MikroTik Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo ports and five 1.25G bps SFP cages. Powered by a 400MHz CPU and 128MB RAM, it runs ROuterOS with a L5 license and supports 11-30V power. The MikroTik Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo ports and five 1.25G bps SFP cages. Powered by a 400MHz CPU and 128MB RAM, it runs ROuterOS with a L5 license and supports 11-30V power.
Product
Specifications • CPU: QCA8511 400 MHz •
Size of RAM: 128 MB •
Storage Type: Flash •
SFP: 5 x 1.25G Ethernet SFP cage (Mini-GBIC; SFP module not included). DDMI support •
Combo Port: 1 (Gigabit Ethernet / SFP) •
PoE In: Yes •
License Level: 5 •
Operating System: RouterOS • Max
Power Consumption: 11 W •
LEDs: 9 x LEDs (1 x user LED) • RJ45 Product Includes (1) MikroTik Cloud Router Switch (1) 24V 0.8A Power Adapter Product Documentation CRS106-1C-5S Datasheet CRS106-1 C-5 S The Cloud Router Switch 106-1 C-5 S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25 Gbps SFP cages. The package includes a power supply. Powered by a 400 MHz CPU and 128 MB RAM, it runs Router OS with an L5 license and supports 11- 30 V power. Product code CRS106-1 C-5 S CPU QCA8511 CPU core count 1 CPU nominal frequency 400 MHz Dimensions 114 x 137 x 29mm Ethernet Combo Ports 1 License level 5 Max Power consumption 11 W Operating System Router OS Po E in Passive Po E Power Jack 1 SFP ports 5 Serial port RJ45 Size of RAM 128 MB Storage size 16 MB Storage type FLASH Supported input voltage 11 V - 30 V Included parts 24 V 0.8 A power adapter Switching results CRS106-1 C-5 S Mode Configuration 64 byte 512 byte 1518 byte kpps Mbps kpps Mbps kpps Mbps Switching Non-blocking Layer 2 throughput 8, 928.6 4, 571.4 1, 409.8 5, 774.4 487.6 5, 922.0 Switching Non-blocking Layer 2 capacity 8, 928.6 9, 142.9 1, 409.8 11, 548.9 487.6 11, 844.0 Switching Non-blocking Layer 1 throughput 8, 928.6 6, 000.0 1, 409.8 6, 000.0 487.6 6, 000.0 Switching Non-blocking Layer 1 capacity 8, 928.6 12, 000.0 1, 409.8 12, 000.0 487.6 12, 000.0
Product
Specifications • CPU: QCA8511 400 MHz •
Size of RAM: 128 MB •
Storage Type: Flash •
SFP: 5 x 1.25G Ethernet SFP cage (Mini-GBIC; SFP module not included). DDMI support •
Combo Port: 1 (Gigabit Ethernet / SFP) •
PoE In: Yes •
License Level: 5 •
Operating System: RouterOS • Max
Power Consumption: 11 W •
LEDs: 9 x LEDs (1 x user LED) • RJ45 Product Includes (1) MikroTik Cloud Router Switch (1) 24V 0.8A Power Adapter Product Documentation CRS106-1C-5S Datasheet CRS106-1 C-5 S The Cloud Router Switch 106-1 C-5 S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25 Gbps SFP cages. The package includes a power supply. Powered by a 400 MHz CPU and 128 MB RAM, it runs Router OS with an L5 license and supports 11- 30 V power. Product code CRS106-1 C-5 S CPU QCA8511 CPU core count 1 CPU nominal frequency 400 MHz Dimensions 114 x 137 x 29mm Ethernet Combo Ports 1 License level 5 Max Power consumption 11 W Operating System Router OS Po E in Passive Po E Power Jack 1 SFP ports 5 Serial port RJ45 Size of RAM 128 MB Storage size 16 MB Storage type FLASH Supported input voltage 11 V - 30 V Included parts 24 V 0.8 A power adapter Switching results CRS106-1 C-5 S Mode Configuration 64 byte 512 byte 1518 byte kpps Mbps kpps Mbps kpps Mbps Switching Non-blocking Layer 2 throughput 8, 928.6 4, 571.4 1, 409.8 5, 774.4 487.6 5, 922.0 Switching Non-blocking Layer 2 capacity 8, 928.6 9, 142.9 1, 409.8 11, 548.9 487.6 11, 844.0 Switching Non-blocking Layer 1 throughput 8, 928.6 6, 000.0 1, 409.8 6, 000.0 487.6 6, 000.0 Switching Non-blocking Layer 1 capacity 8, 928.6 12, 000.0 1, 409.8 12, 000.0 487.6 12, 000.0
