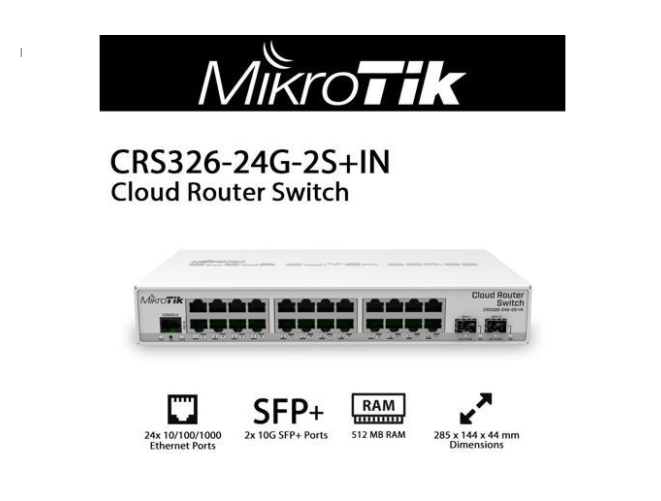

CRS326-24G-2S+IN provides all the basic functionality for a managed switch as well as port-to-port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. A home network setup doesn’t have to be a compromise. This compact and quiet switch is packing some serious server room grade features: a pair of 10G SFP+ cages, 512 MB of RAM, 24 Gigabit Ethernet ports and a sufficient built-in CPU that can handle basic home user needs such as firewall, NAT and even some VPN. And it is extremely affordable – we are keeping the price on par with the previous generation desktop switches. Like many other MikroTik switches, CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to the best home setups. And it is very easy to transport. But make no mistake – this small switch has all the power and features of its bigger rackmount analogue – the CRS326-24G-2S+RM, nothing has been removed. CRS326-24G-2S+IN provides all the basic functionality for a managed switch, and
even more: port-to-port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules. This is the replacement for CRS125-24G-1S-IN, which has been discontinued Product Features • Number of 1G
Ethernet Ports: 24 • Number of 10G
SFP+ ports: 2 •
Operating System: SwOS/ RouterOS (Dual boot) Product
Specifications • CPU: 98DX3236 800 MHz •
CPU core count: 1 •
Size of RAM: 512 MB •
RAM type: DDR3 •
Storage: 16 MB, flash •
License level: 5 •
Supported input voltage: 10-30V (DC Jack); 10-30V(PoE-in) • Number of
DC inputs: 2 (DC jack, PoE-in) •
Operating Temperature: -40°C to +60°C tested • Max
Power Consumption: 21 W Product Includes (1) Cloud Router Switch (1) 24 Power Adapter Product Documentation CRS326-24G-2S+IN data sheet
even more: port-to-port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules. This is the replacement for CRS125-24G-1S-IN, which has been discontinued Product Features • Number of 1G
Ethernet Ports: 24 • Number of 10G
SFP+ ports: 2 •
Operating System: SwOS/ RouterOS (Dual boot) Product
Specifications • CPU: 98DX3236 800 MHz •
CPU core count: 1 •
Size of RAM: 512 MB •
RAM type: DDR3 •
Storage: 16 MB, flash •
License level: 5 •
Supported input voltage: 10-30V (DC Jack); 10-30V(PoE-in) • Number of
DC inputs: 2 (DC jack, PoE-in) •
Operating Temperature: -40°C to +60°C tested • Max
Power Consumption: 21 W Product Includes (1) Cloud Router Switch (1) 24 Power Adapter Product Documentation CRS326-24G-2S+IN data sheet
