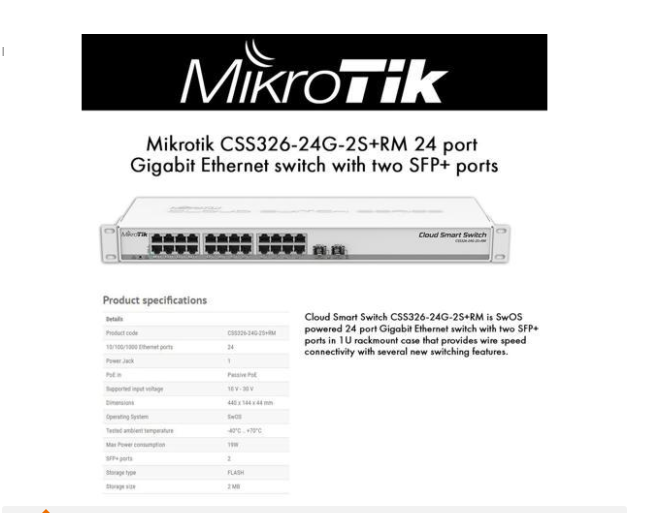

The CSS326-24G-2S+RM is a MikroTik Cloud Smart Switch powered by a Marvell DX switch chip. The device running on an operating system designed specifically for MikroTik switch products - SwOS, which is configurable form your web browser. It gives you access to all the basic functionality for a manages switch, and more; allowing you to manage port-to-port forwarding, apply MAC filters, configure VLA
Ns, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. The SFP cage supports both 1.24G b SFP and 10Gb SFP+ modules. The CSS326-24G-2S+RM is a MikroTik Cloud Smart Switch powered by a Marvell DX switch chip. The device running on an operating system designed specifically for MikroTik switch products - SwOS, which is configurable form your web browser. It gives you access to all the basic functionality for a manages switch, and more; allowing you to manage port-to-port forwarding, apply MAC filters, configure VLA
Ns, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. The SFP cage supports both 1.24G b SFP and 10Gb SFP+ modules. Product Features • Non-blocking Layer 2 switching capacity • 16K host table • IEEE 802.1Q VLAN • Supports up to 4K simultaneous VLA
Ns • Port isolation • Port security • Broadcast storm control • Port mirroring of ingress/egress traffic • Rapid Spanning Tree Protocol • Access Control List • MikroTik neighbor discovery • SNMP v1 • Web-based GUI Product Specifications •
Product code: CSS326-24G-2S+RM •
Switch chip model: 98DX3216A1 •
Storage type: Flash •
Storage size: 2 MB • 10/100/1000
Ethernet ports: 24 •
SFP+ cages: 2 •
Operating system: SwOS •
Supported input voltage: 12 to 30V (jack or passive PoE) •
Dimensions: 440 x 144 x 44 mm •
Operating temperature: -40 to +70°C tested •
Max power consumption: 19W •
Serial port: RJ45 Product Includes (1) Mikrotik CSS326-24G-2S+RM Cloud Smart Switch (1) 24V 1.2A Power Adapter (2) Rack Ears Product Documentation CSS326-24G-2S+RM Datasheet _DELETE_
Ns, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. The SFP cage supports both 1.24G b SFP and 10Gb SFP+ modules. The CSS326-24G-2S+RM is a MikroTik Cloud Smart Switch powered by a Marvell DX switch chip. The device running on an operating system designed specifically for MikroTik switch products - SwOS, which is configurable form your web browser. It gives you access to all the basic functionality for a manages switch, and more; allowing you to manage port-to-port forwarding, apply MAC filters, configure VLA
Ns, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. The SFP cage supports both 1.24G b SFP and 10Gb SFP+ modules. Product Features • Non-blocking Layer 2 switching capacity • 16K host table • IEEE 802.1Q VLAN • Supports up to 4K simultaneous VLA
Ns • Port isolation • Port security • Broadcast storm control • Port mirroring of ingress/egress traffic • Rapid Spanning Tree Protocol • Access Control List • MikroTik neighbor discovery • SNMP v1 • Web-based GUI Product Specifications •
Product code: CSS326-24G-2S+RM •
Switch chip model: 98DX3216A1 •
Storage type: Flash •
Storage size: 2 MB • 10/100/1000
Ethernet ports: 24 •
SFP+ cages: 2 •
Operating system: SwOS •
Supported input voltage: 12 to 30V (jack or passive PoE) •
Dimensions: 440 x 144 x 44 mm •
Operating temperature: -40 to +70°C tested •
Max power consumption: 19W •
Serial port: RJ45 Product Includes (1) Mikrotik CSS326-24G-2S+RM Cloud Smart Switch (1) 24V 1.2A Power Adapter (2) Rack Ears Product Documentation CSS326-24G-2S+RM Datasheet _DELETE_
