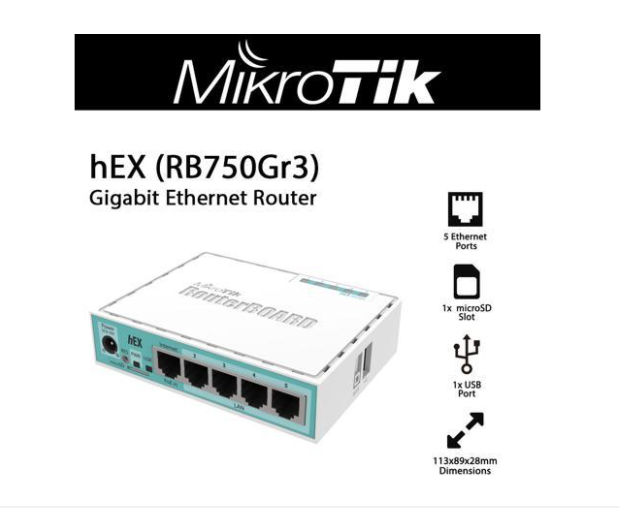

Mikrotik hEX RB750Gr3 Router with 5x Gigabit Ethernet Ports 1x USB Port and 1x microSD Slot

• hEX also known as RB750Gr3 is a five port Gigabit Ethernet router for locations where wireless connectivity is not required
• The device has a full size USB port. This new updated revision of the hEX brings several improvements in performance
• It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880MHz CPU and 256MB RAM
• IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude
• Dimensions: 113x89x28mm; Storage size: 16 MB; Passive PoE (PoE in); PCB temperature monitor, Voltage monitor and Mode button

hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port. This new updated revision of the hEX brings several improvements in performance. This product is the newest version with a manufacturer part of RB750Gr3. hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port. This new updated revision of the hEX brings several improvements in performance. It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that Router
OS supports. IPsec Hardware encryption (~470 Mbps) and dude server package is supported, micro
SD slot on it also provides improved read/write speed for database storage on micro
SD card. Product Specifications •
Product Code: RB750Gr3 •
CPU Nominal Frequency: 880 MHz •
CPU Core Count: 2 •
Size of RAM: 256 MB • 10/100/1000
Ethernet Ports: 5 •
PoE In: Yes • Supported
Input Voltage: 8 - 30 V • PCB
Temperature Monitor: Yes •
Voltage Monitor: Yes •
USB: Yes, Type A 2.0 •
Hardware Encryption: Yes • Dude Server
Package Support: Yes •
License Level: 4 •
Operating System: Router
OS •
CPU: MT7612A • Max
Power Consumption: 5 W Product Includes (1) RB750Gr3 (1) 24V 0/38A Power Adapter Product Documentation RB750Gr3 Datasheet h EX is a five port gigabit ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This new updated revision of the h EX brings several improvements in performance. It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that Router OS supports. IPsec Hardware encryption (~470 Mbps) and dude server package is supported, micro SD slot on it also provides improved r/w speed for database storage on micro SD card. Product code RB750 Gr3 CPU nominal frequency 880 MHz CPU core count 2 Size of RAM 256 MB 10/100/1000 Ethernet ports 5 Number of USB ports 1 Power Jack 1 Supported input voltage 8 V - 30 V Po E in Yes Voltage Monitor Yes PCB temperature monitor Yes Dimensions 4.45 x 3.5 x 1.1 (113 x 89 x 28 mm) Operating System Router OS Tested ambient temperature -22 to 158º F (-30 to 70º C) CPU MT7621 A Max Power consumption 5 W USB slot type USB type A USB Power Reset Yes Storage type FLASH Storage size 16 MB CPU Threads count 4 Ethernet test results RB750 Gr3 MT7621 A (880 Mhz) 1 G all port test Mode Configuration 1518 byte 512 byte 64 byte kpps Mbps kpps Mbps kpps Mbps Bridging none (fast path) 162.4 1, 972.2 443.7 1, 817.4 1039.1 532.0 Bridging 25 bridge filter rules 162.4 1, 972.2 168.1 688.5 174.3 89.2 Routing none (fast path) 162.4 1, 972.2 444.4 1, 820.3 1035.0 529.9 Routing 25 simple queues 162.4 1, 972.2 179.6 735.6 171.4 87.8 Routing 25 ip filter rules 92.9 1, 128.2 94.1 385.4 93.8 48.0 All tests are done with Xena Networks specialized test equipment ( Xena Bay), and done according to RFC2544 ( Xena2544) Max throughput is determined with 30+ second attempts with 0, 1% packet loss tolerance in 64, 512, 1518 byte packet sizes Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
