MX10003-BASE Overview
MX10003-BASE is a Juniper MX10003 base 2-slot chassis; includes 1 RE, 4 fan trays, 4 power supplies, and 1 EMI door with air filter assembly. The service-centric MX10003 Universal Routing Platform is a space- and power-optimized routing platform that helps service providers and cloud operators address long-term traffic, subscriber, and services growth. It provides ultra-high density and throughput in only three rack units (3 U).
Quick Spec
Table 1 shows the quick spec.
|
SKU |
MX10003-BASE |
|
Description |
Juniper MX10003 base 2-slot chassis; includes 1 RE, 4 fan trays, 4 power supplies, and 1 EMI door with air filter assembly |
|
System capacity |
2.4 Tbps |
|
Switch fabric capacity per slot |
N/A |
|
DPCs and/or MPCs per chassis |
2 (MPCs only) |
|
Chassis per rack |
14 |
|
Dimensions (W x H x D) |
19 x 5.217 x 30 in (48.26 x 13.25 x 76.2 cm) |
|
Mounting |
Four-post rack |
|
Power options |
90V to 264V AC |
Product Details

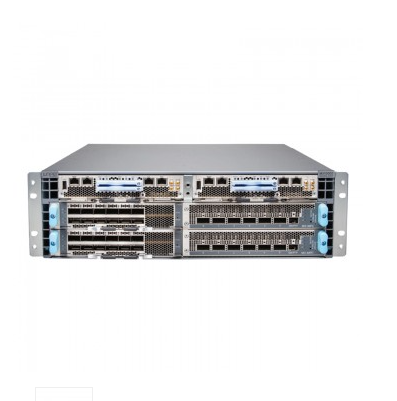

Figure 1 shows the front panel of MX10003-BASE chassis with installed modules. These modules should be ordered separately.
Note:
|
① |
Routing and Control Boards (RCBs) |
|
② |
MIC installed in MIC1 slot of MPC0 |
|
③ |
MIC installed in MIC1 slot of MPC1 |
|
④ |
MPCs |
Compare to Similar Items
Table 2 shows the comparison.
|
SKU |
MX10003-BASE |
|
|
Description |
Juniper MX10003 base 2-slot chassis; includes 1 RE, 4 fan trays, 4 power supplies, and 1 EMI door with air filter assembly |
Juniper 14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE |
|
System Capacity |
2.4 Tbps |
Up to 12 Tbps |
|
Switch Fabric Capacity per Slot |
N/A |
Up to 1.5 Tbps |
|
DPCs and/or MPCs per Chassis |
2 (MPCs only) |
Up to 11 |
|
Chassis per Rack |
14 |
3 |
Get More Information
Do you have any question about the MX10003-BASE?
Contact us now via Live Chat or info@falcon-atlantic.net
MX10003-BASE Specification
MX10003-BASE Specification |
|
|
Description |
Juniper MX10003 base 2-slot chassis; includes 1 RE, 4 fan trays, 4 power supplies, and 1 EMI door with air filter assembly |
|
System capacity |
2.4 Tbps |
|
Switch fabric capacity per slot |
N/A |
|
DPCs and/or MPCs per chassis |
2 (MPCs only) |
|
Chassis per rack |
14 |
|
Dimensions (W x H x D) |
19 x 5.217 x 30 in (48.26 x 13.25 x 76.2 cm) |
|
Mounting |
Four-post rack |
|
Power options |
90V to 264V AC |
|
Operating temperature |
32° to 115° F (0° to 46° C) at sea level |
|
Humidity |
5 to 90 percent non-condensing |
|
Altitude |
13,000 ft |
|
Number of fan trays |
4 |
|
Rack units |
3 |
